INJEKTO 3 | Plastic Injection Molding Machine
INJEKTO 3 is a small and powerful plastic injection molding machine used by entrepreneurs, schools, startups and hobbyists to create products, prototype, test molds (3D printed or metal) and teach about the injection molding process. The possibilities are endless!
Popular Upgrades
Technical Specifications
INJEKTO 3 Specs
- Maximum Air Pressure: 90 PSI
- Maximum Injection Pressure: 40 MPa
- Injection Force at 90 PSI: 9000N (918 kg)
- Injection Volume: 50 mL
- Temperature: Max 300ºC/572ºF (Recommend < 250ºC/482ºF)
- Compressor: Minimum 6 gal tank capable of 80 PSI
- Weight: 34 kg (75 lbs)
- Height: 69–97 cm (27–38 in)
- Width: 56 cm (22 in)
- Depth: 15.5 cm (6.1 in)
- Assembly Time: 2 hours
- Input Voltage: 110V or 220V AC
Compatible Plastics
Compatible Materials:
-
Commodity Plastics:
- ABS, PLA, PP, PE (LDPE, HDPE), PS (GPPS, HIPS), PET, PETG, EVA, CA
-
Engineering Plastics:
- PC, POM (Acetal), PBT, PMMA, PA6, PA66, PPO/PPE, ASA
-
High-Performance Plastics:
- PVDF, PHA
-
Elastomers / Flexible Materials:
- TPU, TPE, SEBS, TPO, PCL
-
Fiber-Reinforced Plastics:
- PLA-CF, PP-CF, PETG-CF, PET-CF, PA-CF, PA-GF
What's Included?
Mechanical Parts:
- 1x Steel Frame (All 14 Pieces)
- 1x Heated Chamber Set
- 1x Aramid Insulation Cloth
- 1x Precision Injection Ram
- 1x Ram Thumbscrew
- 1x Aluminum Pellet Hopper
- 2x Pneumatic Cylinders
- 4x Pneumatic Quick Connectors
- Air Tubing + Connectors
- Safety Shield
- 1x Jar of Easy Flow Plastic Pellets (250g)
- All Necessary Bolts and Nuts
Electronic Parts:
- 1x 24V Power Supply / Cables (1000W)
- 2x Mushroom Head Buttons
- High-Temperature Wire (Fiberglass Insulated)
- 1x PID Temperature Controller (24VDC)
- 1x AC Solid State Relay (24VDC)
- 1x Thermocouple
- 4x Heating Elements (110W Each / 24VDC)
-
1x Pneumatic Solenoid
- Maximum Pressure: 90 PSI
- Operating Temperature: 5–50ºC
- Operating Voltage: 24VDC
Worldwide Shipping (Ships from USA)
Made in USA with Imported Materials
Easy to Assemble
By purchasing INJEKTO 3, you acknowledge that you have read and agree to the terms and conditions.
INJEKTO 3 | Plastic Injection Molding Machine
If you have any questions, you are always welcome to contact us. Our team will get back to you as soon as possible, usually on the same day.
-
Shipping Information
We offer shipping to every country globally. All shipments include a tracking number and shipping confirmation is emailed directly to you.
-
Customer Support
Need quick help? Use the live chat on the bottom right of the screen. A team member will assist you as soon as possible.
-
FAQs
To get answers to frequently asked questions, check the bottom of the product page. You can also access instant answers by clicking the "Need Help?" button on the bottom right of the screen.
-
Contact Us
If you need to contact our team about anything, you can message here, or email us at contact@actionbox.ca.
Injection Pressure
Injection Volume (per shot)
Compatible Plastics
Operating Voltage
Power in Every Push

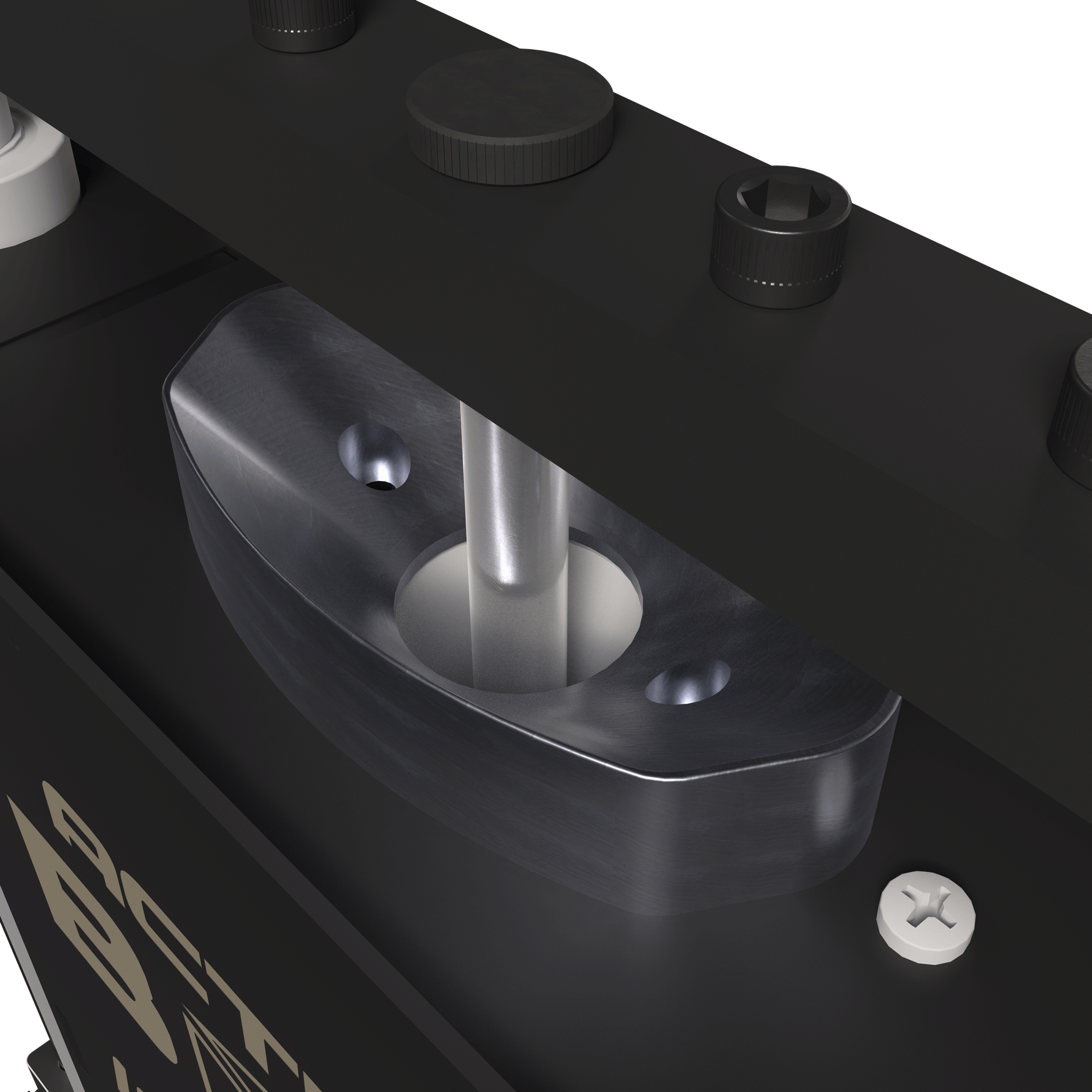

Engineered for performance, the INJEKTO 3 injection system reaches 40 MPa of pressure with a 50 mL shot capacity. The guided ram ensures smooth injection and repeatable results in every cycle.

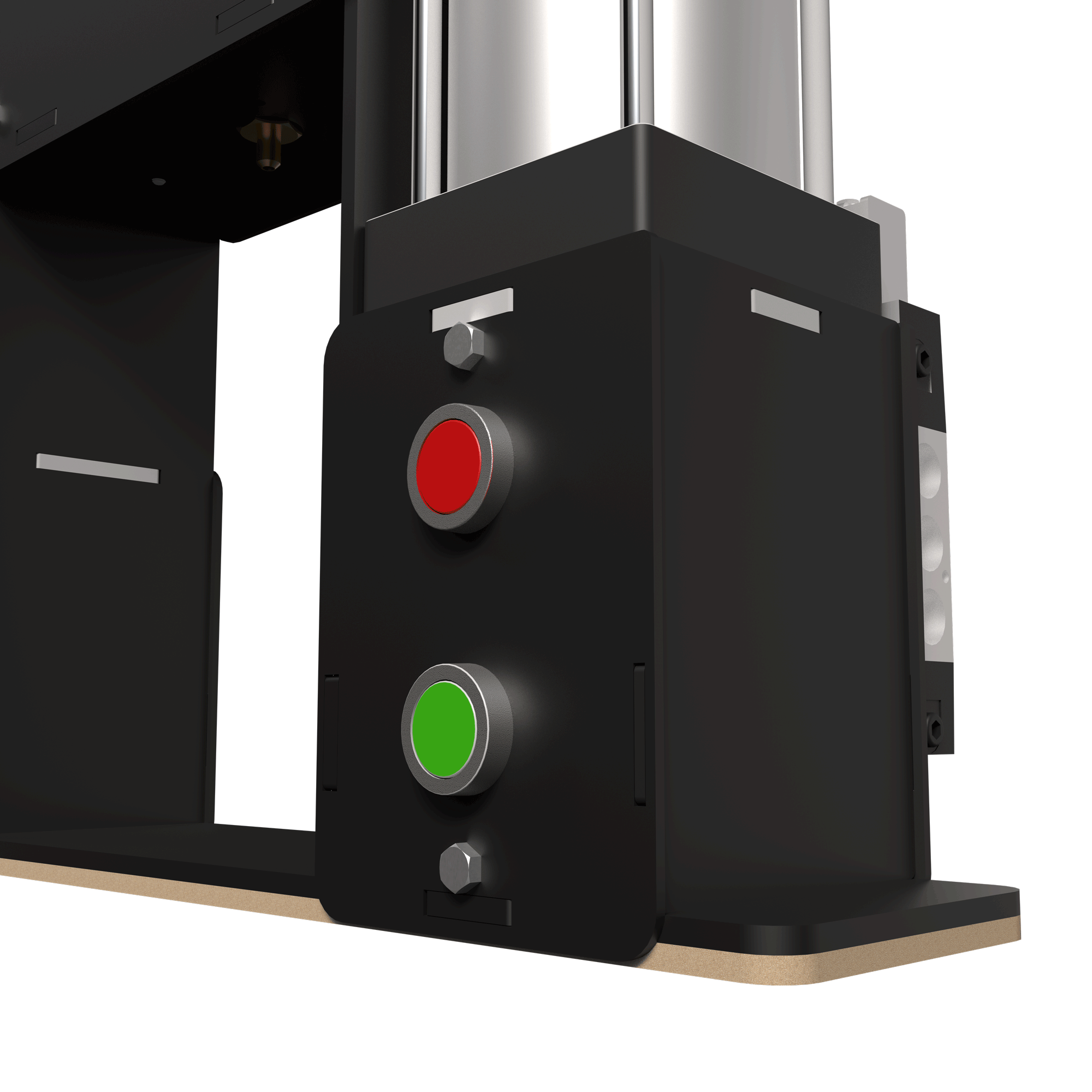

Press. Hold. Inject.
Each button controls a single direction of the injection ram. Press and hold to move up or down, giving full manual control for loading and injection.
Double-Layered Steel Ram
Heavy Steel Frame

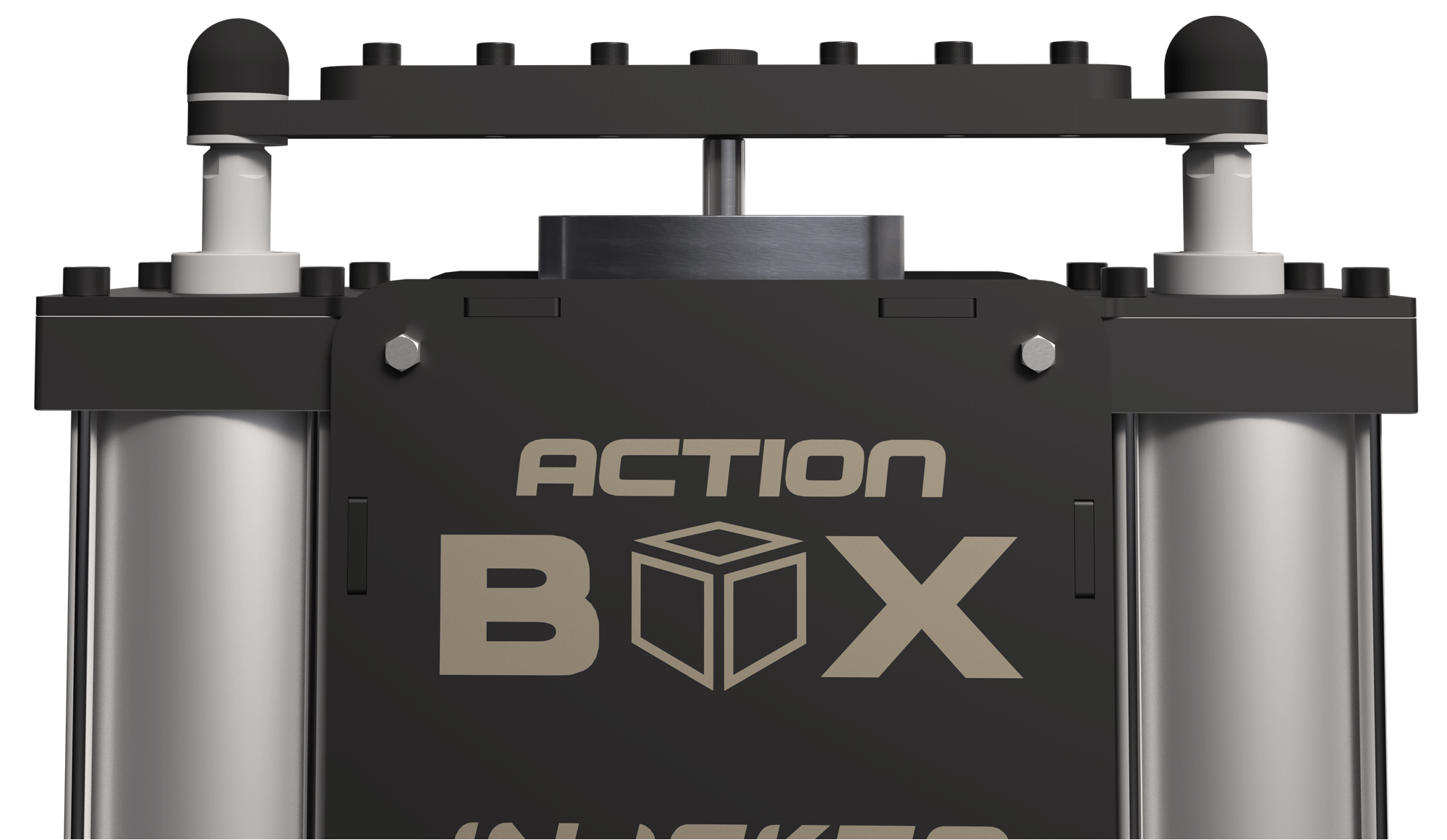

Pneumatic Power
Technical Specifications
- Max Temperature
-
300 °C572 °F
- Shot Size (Injection Volume)
-
50 mL
- Max Air Pressure
-
90 PSI
- Injection Force at 90 PSI
-
9000 N918 kg
- Max Injection Pressure
-
40 MPa
- Weight
-
34 kg75 lbs
- Height
-
69 - 97 cm27 - 38 inch
- Width
-
56 cm22 inch
- Depth
-
15.5 cm6.1 inch
Bring Manufacturing to Your Bench
3D Printed and Metal Mold Compatible
INJEKTO 3 can be used with both 3D printed and metal injection molds.
Easy To Use and Assemble
Comes with a detailed step-by-step assembly instructions video.
Great For Teaching and Prototyping
Easily teach the injection molding process, and prototype your designs.
INJEKTO 3 | Plastic Injection Molding Machine
Spare Heated Chamber Set (for INJEKTO 3)
Bundle and Save $350 USD
Save $350 when you purchase INJEKTO 3 with two or more add-ons of your choice.
FAQs
Here are the most frequently asked questions about INJEKTO 3.
Does INJEKTO 3 work with 3D printed molds?
Yes, INJEKTO 3 has been tested and works with 3D printed molds. This is beneficial for low-cost prototyping.
What is the injection volume of INJEKTO 3?
The injection volume of a single injection is 50mL.
How large of a mold can fit under INJEKTO 3?
The area under INJEKTO 3 is 9.4 x 10.4 inches, so the mold should not be larger than these dimensions. The maximum injection volume is 50mL.
What materials can be injected with INJEKTO 3?
INJEKTO 3 is compatible with the following plastic materials:
- Commodity Plastics: ABS, PLA, PP, PE (LDPE, HDPE), PS (GPPS, HIPS), PET, PETG, EVA, CA
- Engineering Plastics: PC, POM (Acetal), PBT, PMMA, PA6, PA66, PPO/PPE, ASA
- High-Performance Plastics: PVDF, PHA
- Elastomers / Flexible Materials: TPU, TPE, SEBS, TPO, PCL
- Fiber-Reinforced Plastics: PLA-CF, PP-CF, PETG-CF, PET-CF, PA-CF, PA-GF
Are assembly instructions included with the INJEKTO 3 kit?
Absolutely! All machine kits that require assembly come with a detailed step-by-step assembly instructions video.
How long does it take to assemble INJEKTO 3?
Based on a recent customer survey, the average time it takes to assemble INJEKTO 3 from start to finish is 2 hours.
Do you offer bulk discounts for large orders?
Yes, we offer bulk discounts for large orders. Please contact our customer service with the details of your order and we will provide you with a personalized quote.
Do you offer international shipping?
Yes, we offer international shipping to almost every country. If you are unable to select your country at checkout, please contact our customer service at contact@actionbox.ca for assistance
